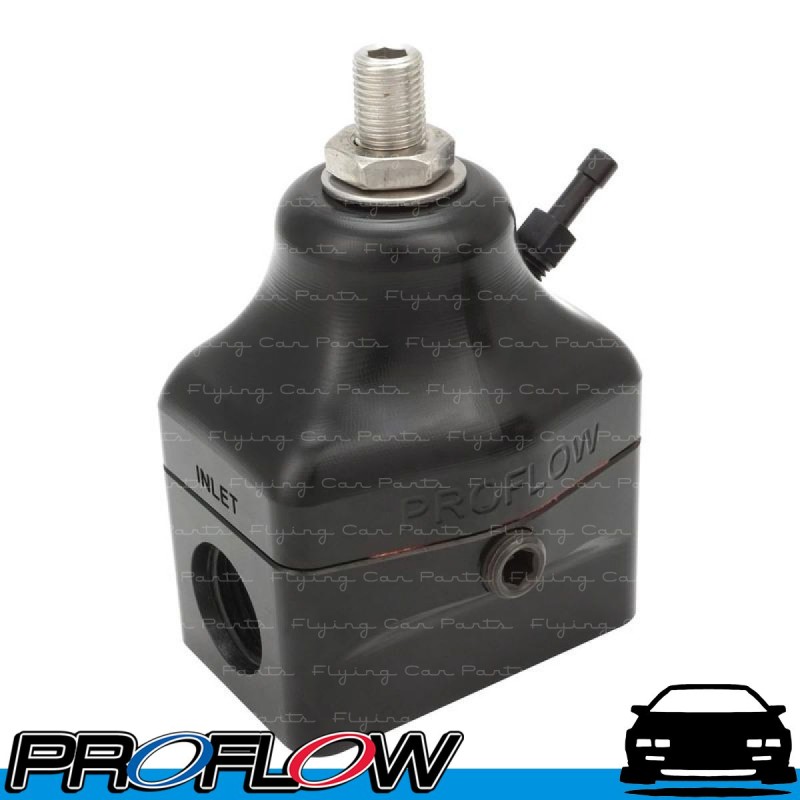

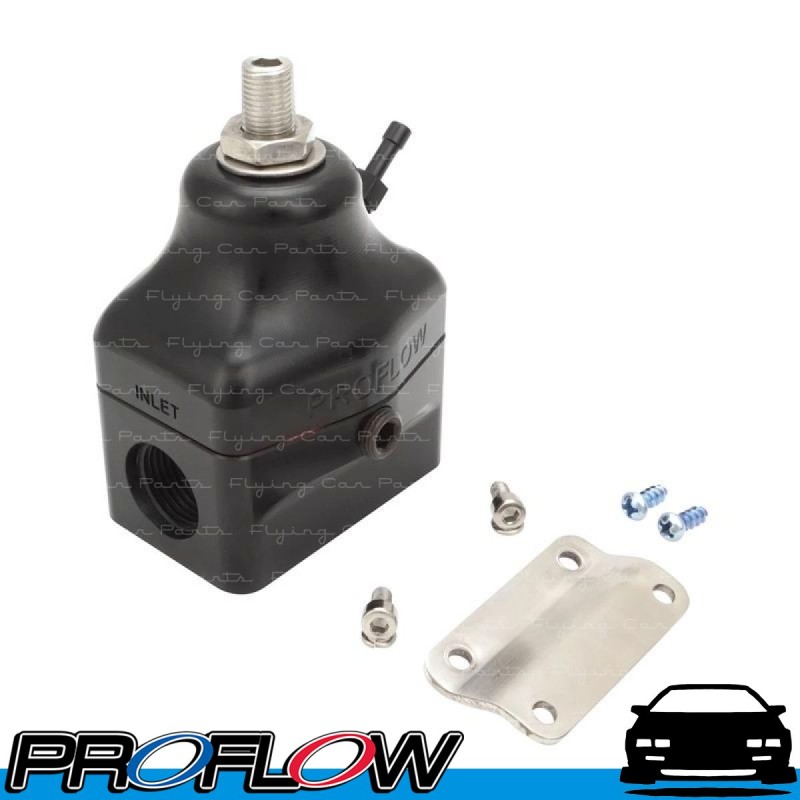

PROFLOW Adjustable 1:1 Fuel Pressure Regulator 3 Port AN -8 (8AN) 40-75psi EFI Fuel Injection
Brand:
Proflow
Part Number:
PFEFS13128
This product is not currently available
More info
Pressure adjustable from 40 to 75 psi (2.75 to 5.17 bar)
E85 and Alcohol compatible
Fuel pressure rises on a 1:1 ratio with boost
1/8" NPT gauge port
1 x -8AN inlet port
2 x -8AN return ports
1 x 4mm manifold pressure reference barb
Note: Thread seleant must be used on the 1/8" NPT guage port fitting
E85 and Alcohol compatible
Fuel pressure rises on a 1:1 ratio with boost
1/8" NPT gauge port
1 x -8AN inlet port
2 x -8AN return ports
1 x 4mm manifold pressure reference barb
Note: Thread seleant must be used on the 1/8" NPT guage port fitting
Specifications
| Brand | PROFLOW |
| Part Number | PFEFS13128 |
| E85 compatible | Yes |
| Inlet | 2 x AN -8 o-ring boss (ORB) |
| Outlet | 1 x AN -8 o-ring boss (ORB) |
| Barb diameter | 4mm (manifold pressure reference) |
| Operating pressure | 40 to 75 psi (2.75 to 5.17 bar) |
| 1/8" NPT Gauge Ports | 1 |
